Product Details

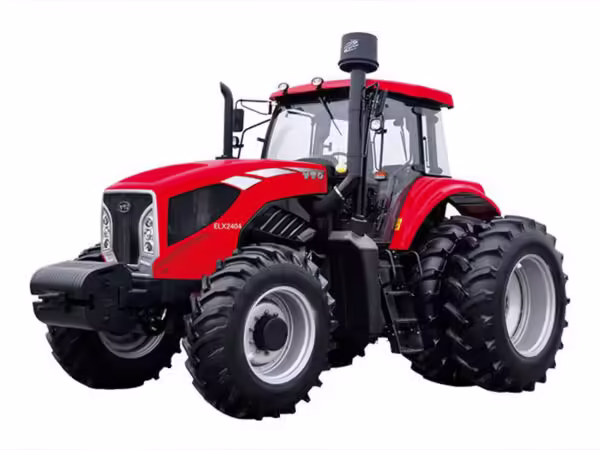

Utility Tractor, 220-240HP

The ELX Series tractors are a reliable choice for efficient and multi-tasking farming thanks to their high traction, air-cooled six-cylinder turbocharged fuel-efficient engine, multi-gear wide speed range design, hydrostatic steering and one-touch electro-hydraulic controls, Carraro durable front axle and comfortable cab with climate control.

Features：
1.ELX series of tractors particularly perform well in farming multitasks with large traction force;
2.The air-cooled 6-cylindered turbocharged diesel engine provides great horsepower while reduces oil consumption and saves energy;
3.Multiple gears provide wide speed range to fit various needs of farm chores;
4.The hydrostatic steering unit offers easy and flexible operation;
5.The wet disc brake system provides safe and reliable immediate stopping action;
6.The electro-hydraulic PTO and the differential lock enable easy and convenient operation with one single action of pressing a button;
7.Carraro’s front axle is reliable and durable with longer service life;
8.The enclosed cab keeps drivers comfortable with a wide vision and a climate control system consisting of ventilators, heating and cooling devices.

Specifications
Model	LX2204*	ELX2404
Engine type	Air-cooled 6-cylinder turbocharged diesel engine
Rated Engine HP (kW)	161 (219)	177 (240)
Engine speed (rpm)	2200
Clutch	single-action
Gears	12F/4R (Option 24F/8R)
Gear shift mode	Mechanical
Speed range (km/h)	2.00-36.69
Brake	Wet, disc
Rear PTO (rpm)	540/1000
Lift capacity (pivot point) (kN)	≥75
Hydraulic multiplier (set)	3
Dimensions (LWH) (mm)	543027503130
Wheel base (mm)	2928
Ground clearance (mm)	420
Wheel track (F/R) (mm)	1552-2252/1700-2288
Min. turning radius (m)	7±0.3
Tyre (F/R)	16.9-28/20.8-38
