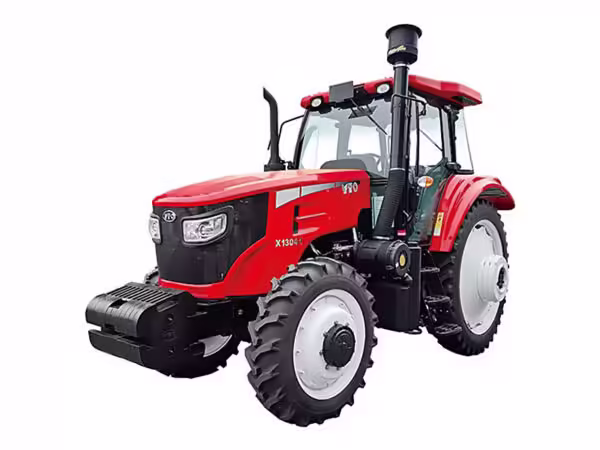

This series of tractors excels in farming and transportation with its large traction force. It is equipped with a naturally aspirated six-cylinder diesel engine with high horsepower and low fuel consumption. The 12F/4R gear position provides a wide speed range, and the transmission cooling system can cope with high-load operations. The hydrostatic steering is easy and flexible, and the wet disc brake is labor-saving and efficient. The independent PTO supports a variety of farm work such as plowing and sowing. The enclosed cab has a wide field of vision, a comfortable experience and optional air conditioning. Optional accessories such as shift synchronizer, soil compaction equipment, and lift are also available, and the optional 1.4-meter wheelbase model is suitable for plowing, inter-tillage, spraying and fertilizing and other operations.
Features：
1.The series of tractors perform well in farming chores and transportation with its large traction force;
2.The naturally aspirated 6-cylindered diesel engine delivers high horsepower while consuming less fuel;
3.12F/4R gears provide a wide speed range to suit various needs;
4.With the heat dissipation system in transmissions, tractors can easily handle demanding chores;
5.The hydrostatic steering unit enables easy and flexible operation;
6.The wet disc brake system reduces operator effort and saves labor;
7.The independent PTO enables tractors to plow, sow, fertilize and do other chores;
8.The enclosed cab provides operators a wide view and a comfortable experience with an air conditioner (optional);
9.Gear shift synchronizers, soil compaction equipment and a lifter are optional accessories;
10.Optional 1.4m wheelbase tractors can be used for plowing, transportation, intertillage, drug delivery and fertilization.
| Specifications | ||
| Model | NLX1304 | NLX1404* |
| Engine type | Naturally aspirated 6-cylinder diesel engine | |
| Rated engine HP (kW) | 95.6 (130) | 103 (140) |
| Engine speed (rpm) | 2300 | |
| Clutch | Independent, double action | |
| Gears | 12F/4R (Option: 24F/8R) | |
| Speed range (km/h) | 2.2-29.6 | |
| Brake | Wet, disc | |
| Rear PTO (rpm) | 540/1000 | |
| Lift capacity (pivot point) (kN) | ≥47 | |
| Hydraulic multiplier (set) | 2 or 3 | |
| Dimensions (L*W*H) (mm) | 5050*2380*3100 | |
| Wheelbase (mm) | 2688.5 | |
| Ground clearance (mm) | 470 | |
| Wheel track (F/R) (mm) | 1672-2003/ 1662-2262 | 1822-2153/1662-2262 |
| Min. turning radius (m) | 7±0.3 | |
| Tyre (F/R) | 14.9-26/18.4-38 | |
| Min. operating mass (kg) | 5200 | 5250 |
